YT5B Gerber Centrifuge Milk Fat Testing Centrifuge Babcock Bottle

YT5B are Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory, hospitals, blood banks.Its max capacity can reach at 4*800ml at the speed of 5000rpm.
  • YT5B

  • 5000

  • 5mL, 7mL, 10mL, 15mL, 50mL, 100mL, 500mL, 750mL, 800mL, PCR/ELISA Plate

  • 4730 x g

  • No

  • 4x800ml

Availability:
Quantity:

YT5B 5000rpm, 4*800ml, Milk Fat Testing Centrifuge For Babcock Bottle


Features:

1. Brush-less motor with simpler construction, more reliable performance, longer life and quietly running.

2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.

4. Microprocessor control, YT5B with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.

5. 10 kinds of accelerating and decelerating speed for your choice.


YT5BR Technical Parameter


Max. Speed 5000rpm
Max. RCF 4730×g
Max. Capacity 4×800ml
Time Range 1~9h59min
Noise (dB) ≤ 60
Speed Accuracy ±20r/min
Temperature Range -20~40°C
Temperature Accuracy ±1℃
Voltage(V/Hz) AC 220V/110V  50HZ 15A
Size (L x W x Hmm) 720×710×410mm
Net Weight(Kg) 125KG


YT5B Technical Parameter

Max. Speed 5000rpm
Max. RCF 4730×g
Max. Capacity 4×800ml
Time Range 0~99min
Noise (dB) ≤ 60
Speed Accuracy ±20r/min
Voltage(V/Hz) AC 220V/110V  50HZ 10A
Size (L x W x Hmm) 700×500×400mm
Net Weight(Kg) 67KG


Matched Rotors for YT5B/YT5BR

Order No Rotor Max Speed(r/min) Volume(ml) Max RCF(×g)

5B-1

4×800ml Swing Rotor

Swing Rotor 4000 4×800ml 3450

5B-2

Swing Rotor 4000 4×750ml 3530

5B-3

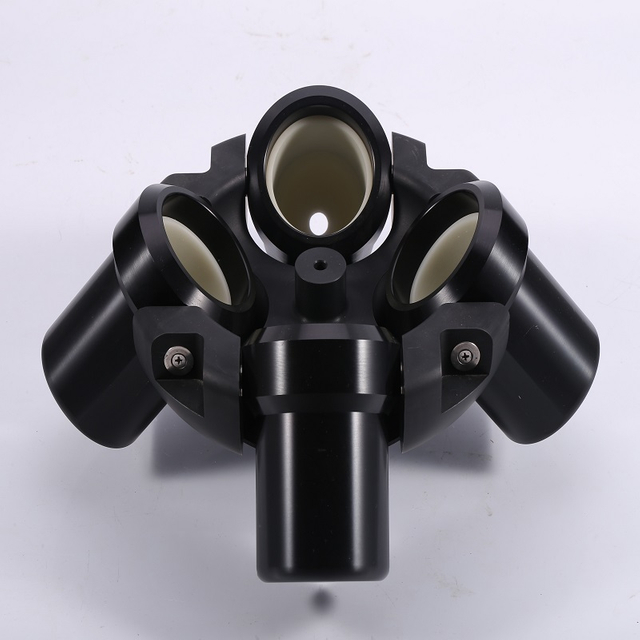

4x500ml-Swing-Rotor

Swing Rotor

4000 4×500ml 3380

5B-4

Swing Rotor 4000 4×4×96(well) 2940

5B-5

Microplate rotor 4000 2×4×96(well) 3210

5B-6

2x3x48well-Microplate-rotor

2×3×48(well) 2300

5B-7

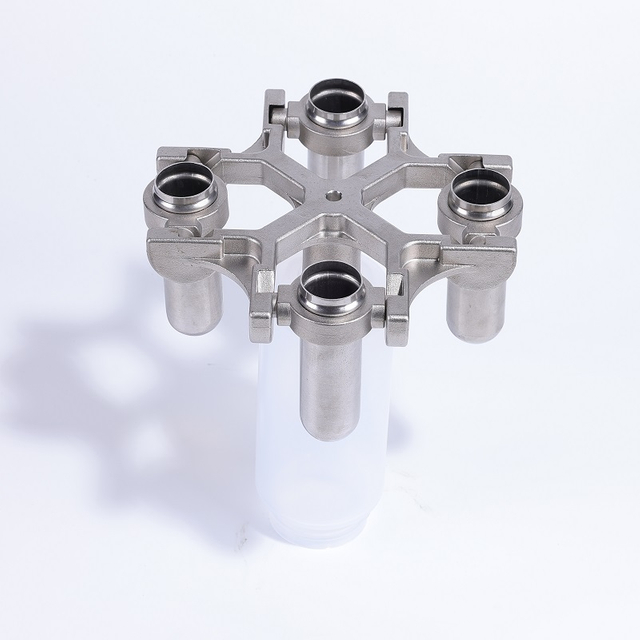

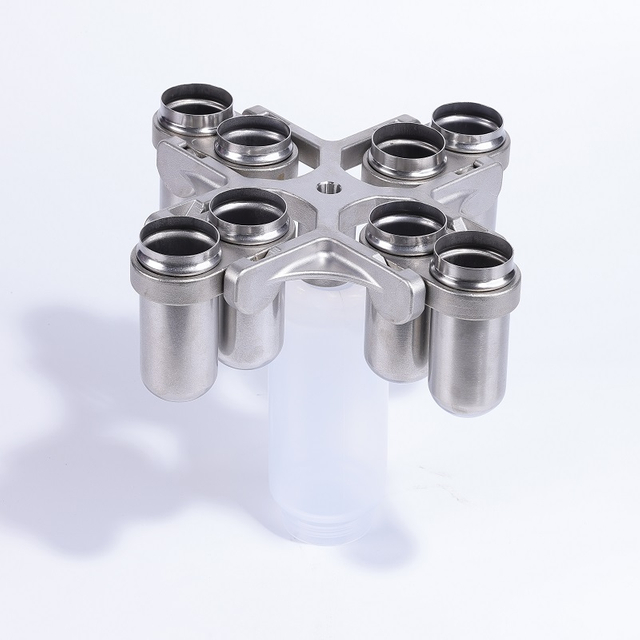

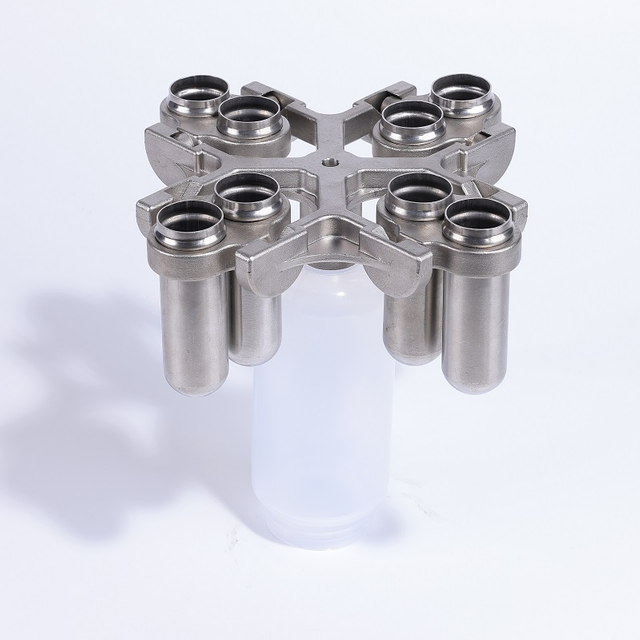

4x1x50ml Swing Buckets Rotor4x1x100ml-Swing-Rotor4x2x100ml-Swing-Rotor4x2x50ml-Swing-Rotor4x4x15ml-Swing-Rotor

4x6x15ml Swing Buckets Rotor

Swing rotor 5000 4×1×50ml 4730
4×1×100ml 4730
4000 4×2×100ml 3020
4000 4×2×50ml 3200
4000 4×4×15ml 3200
4000 4×6×15ml 3200

5B-8

4x8x15ml Swing Buckets Rotor4x12x5ml Swing Buckets Rotor4x12x7ml-Swing-Rotor4x12x10ml-Swing-Rotor4x4x10ml Swing Buckets Rotor

Swing rotor 4000 4×8×15ml 3200
4000 4×12×5ml vacuum tube 2480
4000 4×12×7ml vacuum tube 2760
4000 4×12×10ml vacuum tube 2880
4000 4×8×10/7/5ml vacuum tube 2790
4000 4×6×10/7/5ml vacuum tube 2790
4000 4×4×10/7/5ml vacuum tube 2790
5B-9 Swing rotor 4000 4×24×5ml vacuum tube 2480
4000 4×31×5ml Khan tubes 2480
5B-10 Swing rotor 4000 4×24×7ml vacuum tube 3140
4000 4×31×7ml Khan tubes 3140
4000 4×30×7ml vacuum tube 3140
4000 4×30×5ml vacuum tube 3140
4000 4×40×7ml vacuum tube 3270
4000 4×18×10ml vacuum tube 3140
5B-11 Swing rotor 4000 Dairy bottle 3830

5B-12

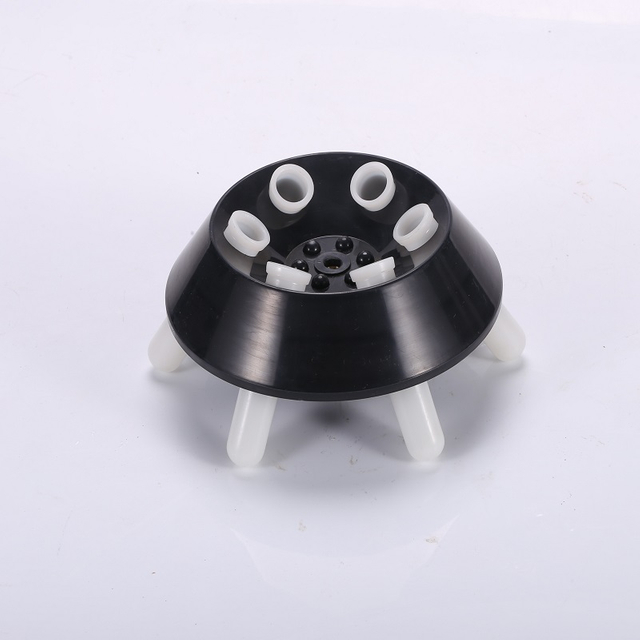

6x15ml-Angle-rotor

Fixed rotor 5000 6×15ml 2540

5B-13

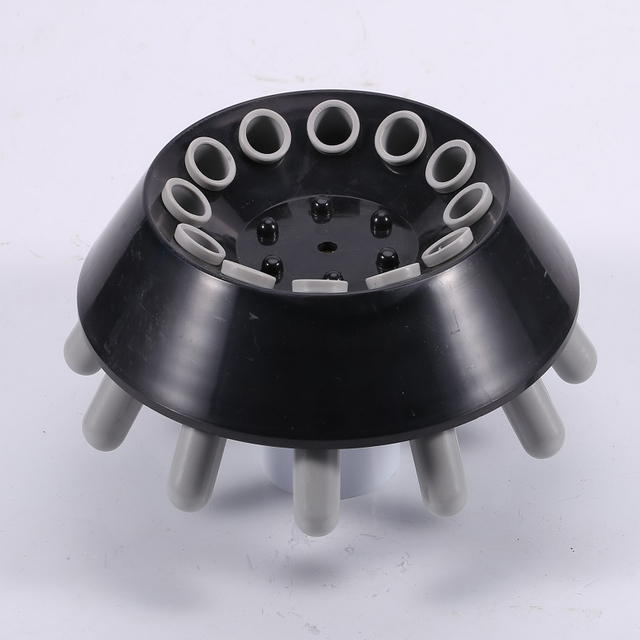

12x15ml-Angle-rotor

5000 12×15ml 3080

5B-14

24x15ml-Angle rotor

5000 24×15ml 3500

5B-15

30x15ml-Angle rotor

5000 30×15ml 3830

5B-16

4x50ml-Angle rotor

5000 4×50ml 2520

5B-17

6x50ml-Angle rotor

5000 6×50ml 2850

5B-18

12x50ml-Angle rotor

5000 12×50ml 3860

5B-19

24x50ml-Angle-rotor

4000 24×50ml 2970

5B-20

4x100ml-Angle-rotor

5000 4×100ml 2630

5B-21

6x100ml-Angle rotor

5000 6×100ml 3130

5B-22

12x100ml-Angle-rotor

4000 12×100ml 2970
