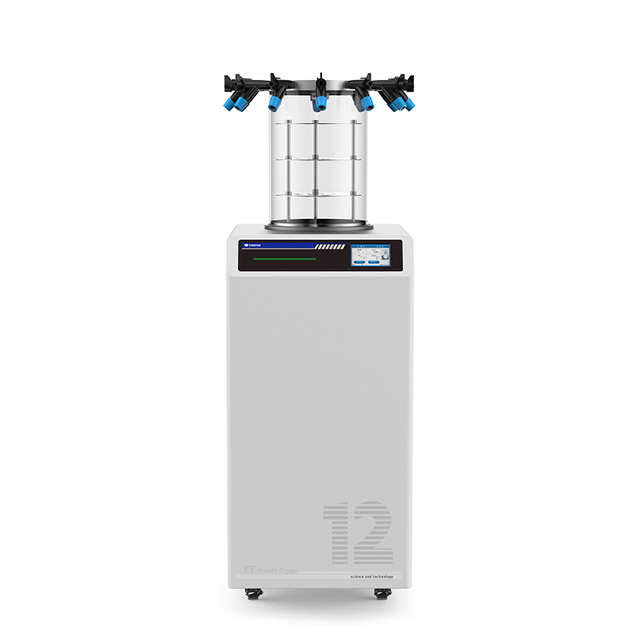

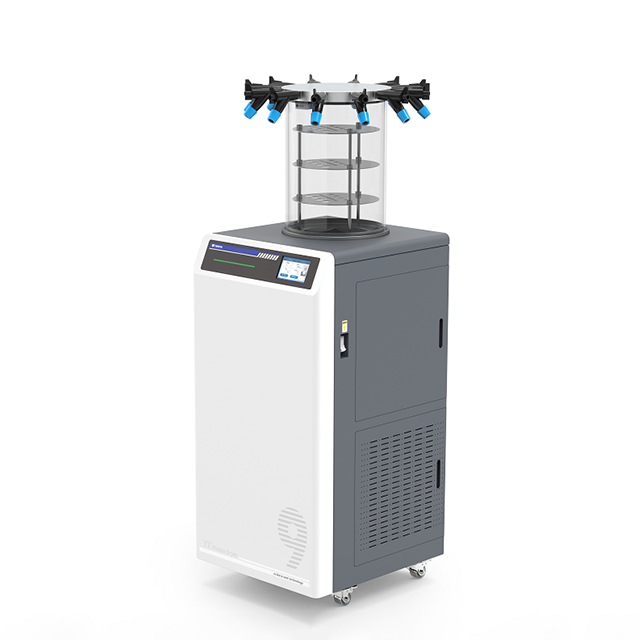

SF7009,SF9009,SF7012,SF9012
Glanlab
| Quantity: | |
|---|---|
Techinical parameter
| Item No | SF7009 | SF9009 | SF7012 | SF9012 |
| Ice condenser capacity | 9kg | 12kg | ||
| Ice condenser temperature | -70 C° | 90℃ | -70 C° | -90℃ |
| Cold trap volume | 15L | 20L | ||
| Freeze dried chamber | High permeability organic glass/multi manifold external valve/stainless steel chamber | |||
| Sample shelf | ●φ260mm/485mm.Single layer area 0.055m²/0.185m².3-10 layers/optional ● Electric heating/manual capping/optional | |||
| Vacuum pump | Extreme vacuum 5*10*mbar with a pumping capacity of 8m³/h optional pump of various types | |||
| Oil mist filter | Standard configuration | |||
| Vacuum pump connection pipe | Single forming stainless steel flexible pipe DN16 ISO-KF L-1.2m | |||
| Anti-corrosive treatment | Cold trap,condensing coil/all equipped with PTFE anti-corrosion treatment as standard. Freeze-drying organic solvents | |||
| External valve | 1-48 ports/optiona | |||
| Eutectic point judgment | Support/Optional | |||
| Data export analysis | Support/Optional | |||
| Power | 0.9kw | 1.5kw | 1kw | 1.6KW |
| Size | 525*570*1080mm | |||
